Non undercoated Southern California car. Nearly Rust free with the exception of an overlay in the hell hole. Longitudinal, floors and all body panels are original as I carefully choose a clean chassis. Painted Wimbledon White (originally red), for the R theme. Reinforced Inner rear suspension ears (common failure area). Smoothed Black top. Rocker panels are steel (new fiberglass included)
Bone Stock F20C mated to a 901 side shift transmission via Kennedy Adapter. GT style without flares. Goal was to retain original 914 styling and feel. Original intent was track oriented but changed it to street. Never been tracked so the suspension setup is untested, but I started with a setup that should understeer.
Dangerously fast from 6500 to 9000 rpm with 240hp @ 8300 rpm, 8900 rpm red line - similar power delivery to a factory GT 2.0 rated at 210 hp @ 8000rpm. Sounds great. Reminds me a lot of a 2.2S six I had in the 80's, but faster.
Next steps on my list: Boxster front calipers, Carpeted interior with tray, Removal of stock engine mounts for weight saving and cleaner look, Add a decorative top tube where I cut the thin upper portion (non structural) of the trunk upper bulk head, Hidden kill switches, reinstall Interior A pillar trim, change wheel color to yellow.
Mike
Email: fasthonda@msn.com
Greenville, SC
865-591-1195
Build:
Original wiring harness was replaced with an 8 circuit kit from Painless Performance (2 unused circuits remain) Keyless push button start, GT style master battery switch. Functioning brake lights, parking lights, driving lights and head lights (requires manual cycling to raise them). No interior lighting or turn signals yet.
Gauges - Tach, water temp, oil pressure light, Fuel level, Battery Voltage
Powertrain:

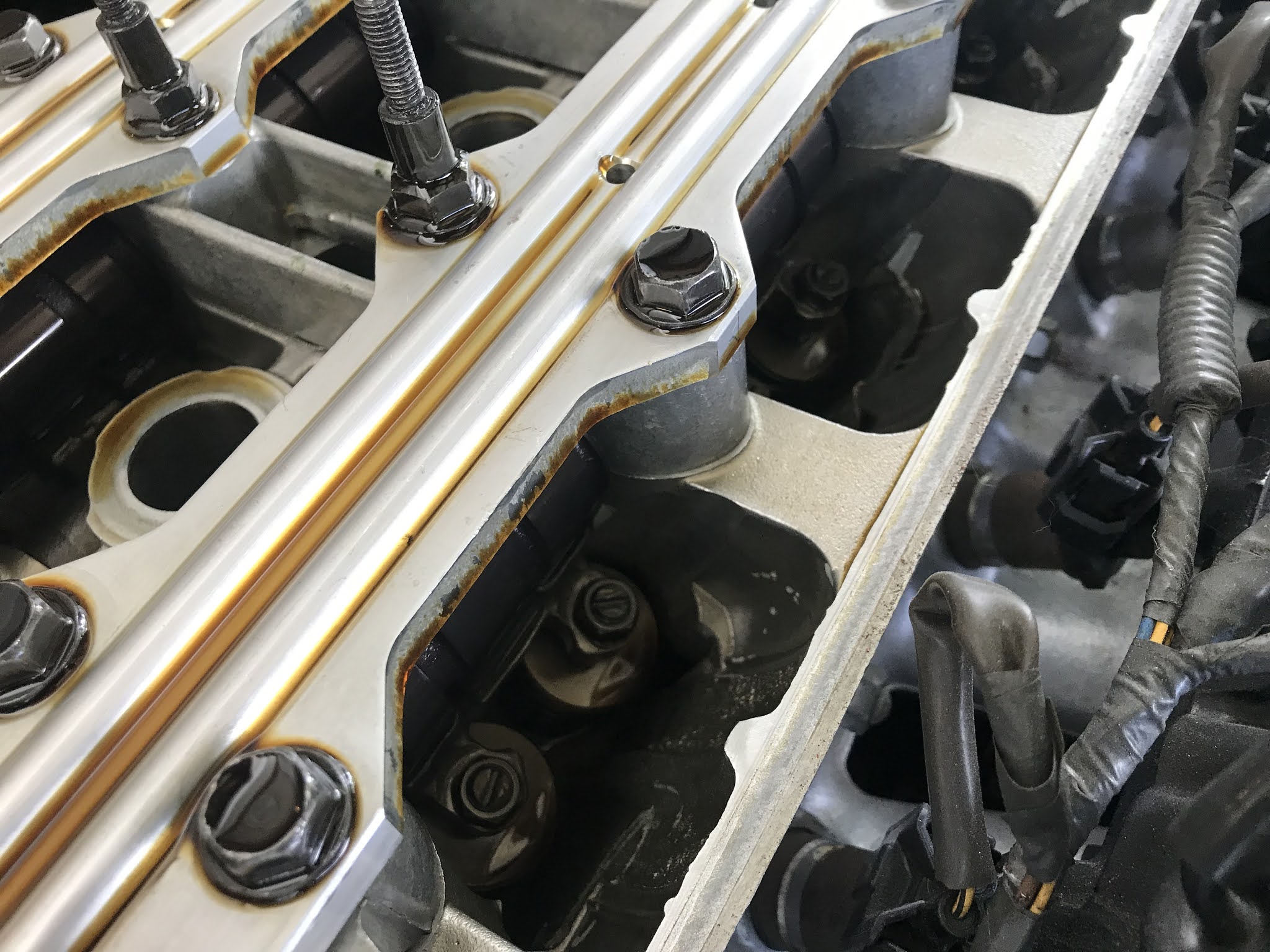

Healthy bone Stock F20C from a 2001 S2000 with approx 50k miles when pulled from donor car. AC Delete, Stock ECU and live OBD2 port.
Maddog firewall mount.
Kenedy Engineering adapter / flywheel. Stock 914 Clutch and pressure plate.
Refreshed 901 side shift with shortened 3rd (flipped 5th) and S 4th. Stock 5th. New synchro's. Stock shifter and linkage.
F20C stock header with Dual chamber muffler,2.5 inch tubing. No CAT
Firewall access (lexan and steel covers)
Stainless fuel lines in the tunnel
Suspension&Brakes:
87 Carrera Front Suspension and brakes (25 mm rotors), Stock pads. No parking brake.
New master cylinder (19mm), SS brake lines, No Proportioning valve.
F/R Bilstein dampers, Ground control sleeves w/ 150 lb/in ERS.
Rear poly trailing arm bushings, Front is rubber.
Stock 15 mm front sway bar
Rear fenders slightly rolled
Real 15x7 Fuchs w/ Nitto NT05 205/50-15, metal valve stems
Rear hubs drilled to 5 lug (early 70-72 embossed version), OEM Studs
986 spare & jack
Front Tow bar with receiver.
Weight Reduction:
Lexan rear window
Fiberglass bumpers
GT style front valance - fiberglass
GT style engine lid - custom made
GT style front //rear hood latches, - front hood springs and stock latches removed
Rear heat shield removed
911 Aluminum front cross member (stock on the 87 front end)
Gutted doors (no glass, window regulators or crash beams)
Wiper motor removed (Rain X for just in case) No intention of ever driving in the rain
Interior:
New Recovered stock seats
New header seal, door, and trunk seals
4 pt harnesses, GT style belt loops
Lecarra steering wheel with 356 badge
Aluminum door panels
Rebuilt pedal cluster
Battery relocated to passenger side
New shift knob and boot
GT style gas cap - much easier to grab
Spare parts- willing to sell separate:
911 SC complete front end. W/ Green Bilstein optioned struts.
Extra Pair of 15x7 Fuchs- nice
stock steering wheel & column
917 style shift knob & stock Shifter
Refreshed Transmission with Stock gearing and Several disassembled ones.
Fiberglass rocker panel set new
Gas tank
Engine lid grill with letters
Front Hood, Engine lid, Doors, F/R steel bumpers
Body Wiring harness sections
Rear trailing arm set w/ pivot shafts, 4 axles, 2 hubs.
Side mirrors, door handles, dash (has cracks), pedal assembly, Steering column with switches, Shift linkage, tail lights, rear stock valance, Front LE replica
Box of oem Hardware.
Rennline pedal board (solid version), New Gas Pedal
Stock ECU and cut Header
Unorthodox Racing Pulley kit - new
Denso coil pack and Plug set - new
